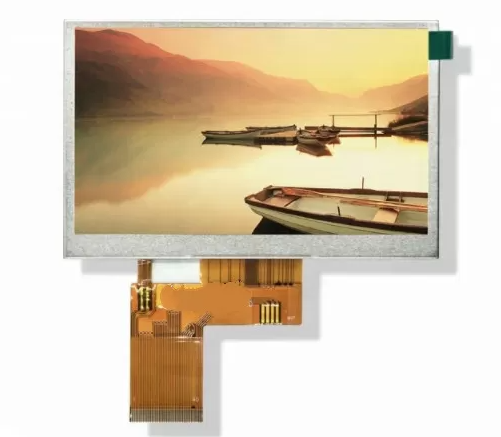

Custom Transparent 4.3 TFT LCD Display
High-quality 480 × 272 dot TFT color screen with transparent display technology for enhanced visual integration.
Product Specifications
| Resolution |
480 × 272 |
| Size |
4.3 Inch |
| Viewing Direction |
6 O'Clock |
| TFT Mode |
TFT, Transmissive |
Detailed Technical Parameters
| Item |
Content |
Description |
| 1 |
Display outline size |
105.5 (W) mm × 67.2 (H) mm × 3.95 (D) mm |
| 2 |
VA size |
95.04 (W) × 53.86 (H) |
| 3 |
Resolution |
480 (RGB) × 272 |
| 4 |
With/Without Touch screen |
Without, RTP, CTP Option |
| 5 |
Interface |
24 bit RGB interface |
| 6 |
Brightness |
220 Cd/m² |
| 7 |
Color |
16M colors |
| 8 |
Drive IC |
OTA5180A |
Core Technical Parameters
- Screen size: 4.3 inches (diagonal)
- Effective display area: approximately 95.04 × 53.86 mm
- Resolution: 480 × 272 (RGB)
- Aspect ratio: 16:9, pixel pitch: approximately 0.198mm × 0.198mm
- Display type: Active matrix TFT, fully transparent / semi-transparent
- Supports constant white / constant black mode, transmittance can be customized
- Brightness: 300-800 cd/m² (high-brightness version suitable for outdoor environments)
- Viewing angle: 178° (IPS) / 12 points (TN)
- Interface: RGB24, SPI, MIPI
- Operating temperature: -20℃ ~ +70℃
- Size / thickness: approximately 105.5 × 67.2 × 3-4mm
Product Core Highlights
- Transparent Display Technology: Enables virtual and real integration by overlaying digital content on physical objects
- High Customization Capability: Optical parameters (transmittance, haze, coatings), hardware options, and structural modifications
- Low Power Consumption: Typical working voltage 3.3V with LED backlight
- High Reliability: Industrial-grade temperature range with strong anti-interference capabilities
Core Application Scenarios
- Intelligent Cockpit & In-Vehicle Display: HUD, central control panels, seat screens
- Retail & Commercial Display: Transparent windows, smart price tags, interactive advertising
- Industrial & Medical Equipment: HMI interfaces, medical imaging, portable terminals
- Smart Home & Consumer Electronics: Smart mirrors, appliance panels, wearable devices
- Education & Cultural Creation: Interactive teaching aids, museum installations
Frequently Asked Questions
1. I want the LCD display 8 digits and the outline size is 65x30x2.8mm?
No problem. Please send us your specifications or drawing. If you don't have specifications, provide samples and we'll recommend suitable options or customize based on your requirements.
2. This LCD is just what we want, but it is big size, do you have any smaller size? And the display content need to be changed a little.
For segment type LCD modules, modifying outline size or display content requires a new LCD glass module with custom tooling.
3. This LCD display is HTN type, but I want STN type, can you make?
Yes, we can change the display type according to your request.
4. I want customize a new LCD module. Can you do?
Yes, we can. Please send your drawing or provide outline size, display information, and technical specifications for customization.
5. What is leading time for tooling?
Typically 15 to 25 days after drawing confirmation and tooling charge payment. Exact timing will be confirmed upon drawing approval.
6. Can you send us samples for checking?
Yes, sample orders are available.
7. What is the Leading Time?
For standard products in stock: 1 day after payment. For mass production of special orders: 15-30 days. We'll notify you if we can complete earlier.

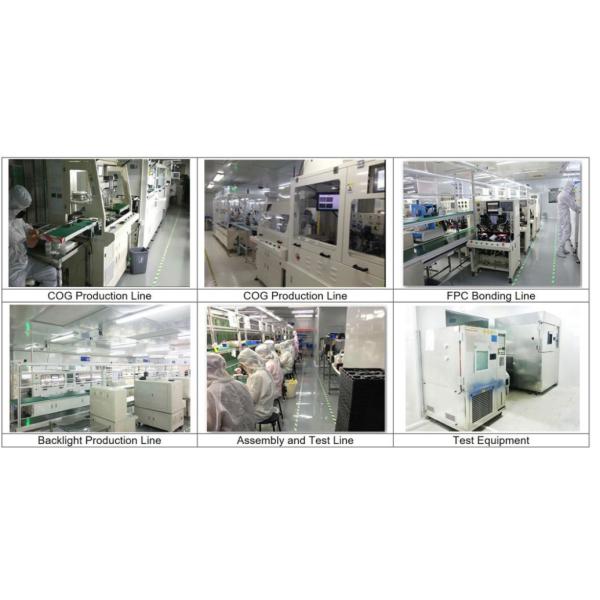

Production Capabilities
- Clean Room class 10k@0.8um, Pressure 0.8kgf
- Antistatic floor, resistance: 1x10 ohm to 1x10 ohm
- COG production lines: 4
- Backlight production lines: 2
- Existing machine capacity: 1KK per month
Quality Assurance
- ISO9001 Quality Management certified
- One year guarantee for unartificial damage
- ROHS and REACH compliant
Key Advantages
- Small LCD display screen solutions
- Competitive pricing
- Large production capacity
- Full certification compliance
- Custom dimensions available
- STN blue small LCD display options
