1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics

Storage Temperature : -40°C To +85°C

Driving Method : 1/64 Duty Cycle

Viewing Direction : All Viewing Angles

Dimensions : 42.04(L) X 37.0(W) X 3.1(T) mm

Connectivity : pin

Display Mode : Passive Matrix

Resolution : 128x64 Dots

Active Area : 35.052(L) X 17.516(W) Mm

Place of Origin : China

Brand Name : BBI

Certification : ISO9001 RoHS

MOQ : 1000

Price : 0.7-7usd

Packaging Details : CARTON

Delivery Time : 3-4WEEKS

Payment Terms : T/T

Supply Ability : 100000/MONTH

Contact Now

1.54 Inch OLED Display Module 128x64 SPI Interface White / Blue Font

The Organic Light-Emitting Diode (OLED) represents next-generation display technology, delivering brighter and clearer images with superior response speeds. This monochrome OLED display features 128 x 64 individual dots and offers multiple interface options including default 4-line SPI, with 6800, 8080, and I2C interfaces available.

Built using Chip-on-Board (COB) technology, this OLED module includes an integrated PCB board for easy installation into customer applications. The crisp white monochrome 1.54-inch 128x64 graphic OLED display module boasts a 50,000-hour lifetime and utilizes the popular SPD0301 controller (compatible with SSD1309), making it compatible with a wide range of microcontrollers including Raspberry Pi and ESP32.

Technical Specifications

Product	1.54" Inch Graphic OLED Screen
Resolution	128x64 Dots
Display Mode	Passive Matrix
Interface	4 Wires SPI Interface
Optics	All Viewing Angles
Outline Dimensions	42.04(L) X 37.0(W) X 3.1(T) mm
Active Area	35.052(L) X 17.516(W) mm
Pixel Pitch	0.254 X 0.254 mm
Driving Method	1/64 Duty Cycle
Operating Temperature	-40°C To +70°C (Customizable)
Storage Temperature	-40°C To +85°C
Supply Voltage	2.8V

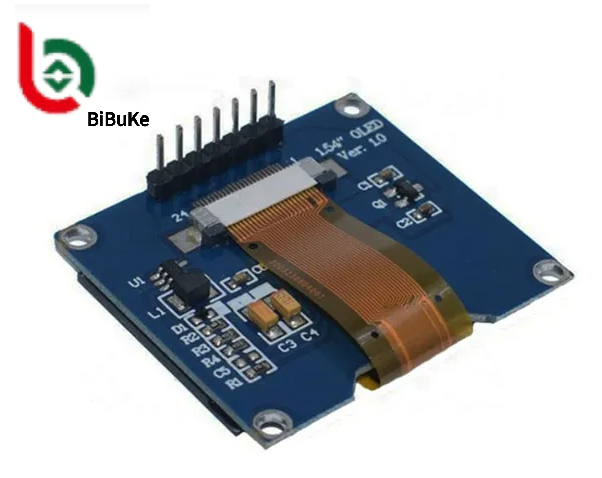

Product Images

1.54 Inch OLED Display with 128x64 Resolution and SPI Interface for Crisp Monochrome Graphics

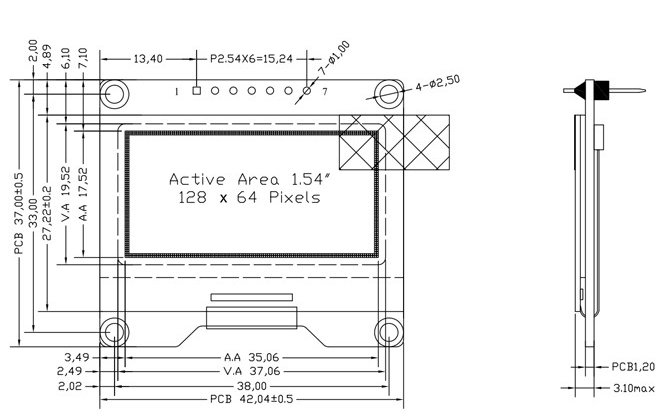

Technical Drawings

Packaging & Shipping

Packaging Options

We offer multiple packaging solutions including carton boxes, cupboard packaging, EPE foam, and blister trays. Packaging methods are customized based on product size and specific customer requirements, accommodating different international standards.

Shipping Methods

Available shipping options include express carriers (DHL, FedEx, EMS, UPS), air freight, and sea shipping. We accommodate your preferred shipping method for optimal delivery.

Payment Methods
