Beauty Equipment Custom Size LCD Display
6 O'Clock Negative HTN LCD Display with full customization capabilities for beauty equipment applications.
Product Specifications
| Type |
STN LCD Display |
| Storage Temperature |
0~50, -10~60, -20-+70℃, -30~80 |
| Voltage |
2.8~5.0 V |
| Connector |
Pin Or Zebra |
| Driving Method |
Static/Dynamic |
| Polarizer Type |
Transflective/Transmissive/Reflective |
Technical Parameters
| Item |
Content |
Description |
| 1 |
LCD Type |
TN, HTN, FSTN, VA, DFSTN, STN LCD Display |
| 2 |
Outline Size |
Customized |
| 3 |
VA Size |
Custom or 68*65/65mm*1.1T |
| 4 |
Viewing Direction |
6 O'clock or 12 O'clock |
| 5 |
Voltage |
2.8V, 3.0V, 3.2V, 3.6V, 4.0V, 4.5V, 5.0V |
| 6 |
Display Mode |
Positive or Negative |
| 7 |
Backlight |
With or without |
| 8 |
Operation Temp |
0°C TO +50°C, -10°C TO +60°C, -20°C TO +70°C |
| 9 |
Storage Temp |
-10°C TO +60°C, -20°C TO +70°C, -30°C TO +80°C, -35°C TO +90°C |
| 10 |
Contactor |
Pin, Zebra or FPC |
Core Product Features
Custom Size Design
Perfectly adapts to the shape of beauty equipment. Supports full-size customization from 1.5 inches to over 10 inches, with narrow bezels and special cutting designs to maximize fit with device shells and enhance overall aesthetics.

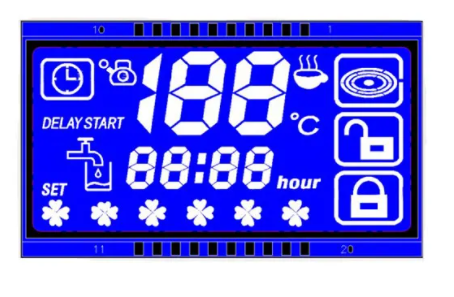

6 O'Clock Negative HTN Technology
6 o'clock viewing angle ensures optimal observation from below, ideal for beauty device usage where users typically view screens from lower positions. Negative HTN display provides high contrast between black background and white text, maintaining clarity even in bright environments like beauty salons or outdoor settings.
High Reliability & Durability
Moisture-proof and corrosion-resistant packaging with excellent sealing. Operating temperature range of -20℃ to 70℃ adapts to various environments. Tempered glass panels provide scratch and wear resistance for daily operation durability.
Core Applications
Specifically designed for beauty equipment sector, widely used in household and commercial beauty devices for operation interaction and data visualization.
Household Beauty Devices
- Hair removal devices: Settings adjustment, remaining flash count, skin contact sensing, working countdown
- Facial cleansing devices: Cleaning modes, working duration, battery status
- Radiofrequency beauty devices: Energy levels, temperature control, mode switching status
Commercial Beauty Equipment
- Skin detectors: Moisture, oil content, collagen data, skin analysis reports
- Photon skin rejuvenation/laser treatment: Wavelength, energy density, treatment time, probe status
- Body shaping instruments: Shaping modes, pressure levels, working time
Specialized Beauty Scenarios
Also applicable to nail light therapy lamps (curing time, light intensity) and scalp care devices (oil detection, massage levels).
Packaging & Shipping
Packaging Options
Carton boxes, cupboard, EPE, blister tray. Packaging method depends on product size and customer requirements, with variations for different countries.
Shipping Methods
Express shipping via DHL, FedEx, EMS, UPS, air shipping, or sea shipping. Any preferred shipping method available.
Payment Methods
Multiple payment options available to suit customer preferences.
