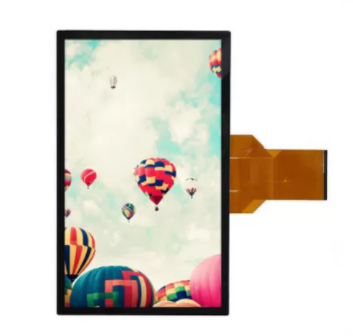

10.1 Inch TFT LCD Screen with RGB Interface 300cd/m² Brightness and All Viewing Angle

  • 1
  • 2

Interface : RGB

Size : 10.1 inch

Viewing Angle : All

Brightness : 300cd/m²

Pins Number : 40PINS

Backlight Type : LED

Lcd Type : TFT

Touch Screen : yes

Place of Origin : China

Brand Name : BBI

Certification : ISO9001 RoHS

MOQ : 1000

Price : 0.7-7usd

Packaging Details : CARTON

Delivery Time : 3-4WEEKS

Payment Terms : T/T

Supply Ability : 100000/MONTH

Contact Now

10.1 Inch TFT Interfacing Touch Screen With Arduino 40 Pins
High-performance 10.1-inch TFT touchscreen display with Arduino 40-pin compatibility, designed for industrial and development applications.
Technical Specifications
Parameter Value
Resolution 1024 (RGB) * 600
Size 10.1 Inch
Viewing Direction All
TFT Mode TFT, Transmissive
Detailed Specifications
Item Content Description
1 Display outline size 229.46 (W) * 149.2 (H) * 2.8 (D)
2 VA size 216.96 (W) * 135.6 (H)
3 Resolution 1024RGB * 600
4 With/Without Touch screen RTP
5 Interface RGB
6 Brightness 300cd/m²
7 Color 16.7M
8 Pixel Pitch 0.2175 (W) * 0.2088 (H)
10.1 Inch TFT LCD Screen with RGB Interface 300cd/m² Brightness and All Viewing Angle 10.1 Inch TFT LCD Screen with RGB Interface 300cd/m² Brightness and All Viewing Angle
Product Overview
The 10.1-inch TFT interface touchscreen features a large display area with excellent image quality, designed for seamless integration with Arduino 40-pin development boards for human-machine interface applications.
Display Features
  • High resolution TFT display with 16.7 million colors
  • 300cd/m² brightness for clear visibility
  • Wide viewing angle up to 80 degrees
  • Capacitive touch support with multi-touch capability
  • RGB interface for stable signal transmission
  • Operating temperature range: -20℃ to 85℃
Arduino 40-Pin Connection
Connect the power pins (VCC, GND) to Arduino's power supply (5V or 3.3V). Interface the SPI communication pins (CS, RST, DC, MOSI, SCK) to Arduino's SPI interface. For touch functionality, connect touch interface pins (T_CLK, T_CS) to Arduino's digital pins.
Applications
  • Human-machine interface for control panels and industrial equipment
  • Data visualization for monitoring systems
  • Educational tools for programming and electronics learning
  • DIY projects and prototyping
10.1 Inch TFT LCD Screen with RGB Interface 300cd/m² Brightness and All Viewing Angle
