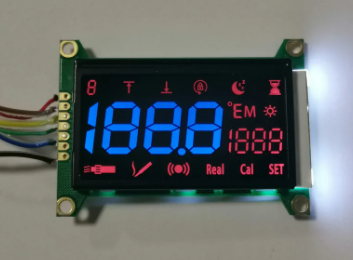

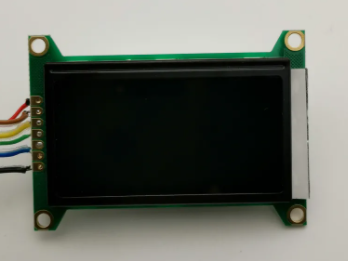

Blue Segments VA LCD Module Black 5V LCD Display White Backlight With PCB
Detailed Specifications
| Module size |
63(W)* 45(H)* 9.5(T) mm |
Display mode |
VA, Negative |
| LCD viewing area |
50(W)* 26(H) mm |
Polarizer type |
Transmissive |
| Driver IC |
HT1621 |
LED backlight |
White |
| Drive method |
1/4 Duty, 1/3 Bias |
Working voltage |
5.0V |
| Viewing angle |
12 O'clock |
Connection Way |
COB+Zebra |
| Operating temp. |
0~+50℃ |
Storage temp. |
-10~+60℃ |
Product Overview
A VA (Vertical Alignment) LCD display module is a pre-assembled unit that integrates a VA LCD screen with a driver circuit and often includes features like backlighting and communication interfaces.
These modules are used in devices that require high-contrast, energy-efficient displays with customizable segments or graphical elements.
Selection Guidelines
- Define your application's display requirements (segments, icons, or graphical elements)
- Match the size and resolution to your design constraints
- Ensure compatibility with your microcontroller or system's driver IC
- Verify environmental requirements like operating temperature and sunlight readability
Technical Details
Blue segment VA liquid crystal module: Features vertical alignment of liquid crystal molecules for high contrast and wide viewing angle. Ideal for digital, character or symbol displays in devices like electronic watches, calculators, and instruments.
Black 5V LCD Display: Operates at standard 5V power supply, compatible with most microcontrollers including Arduino and Raspberry Pi. Features normally black mode for better visibility.
White backlight: Composed of white LED lamps with blue light LED chip and fluorescent powder for enhanced visibility in low-light conditions.
PCB: Provides electrical connections and physical support for all components, integrating control circuits for display signals, power supply, and backlight driving.
Packaging & Shipping
Packaging: Carton boxes, Cupboard, EPE, Blister Tray. Packaging method varies based on product size and customer requirements.
Shipping: Available via DHL, Fedex, EMS, UPS, air shipping, or sea shipping according to customer preference.
