2.8" Inch 240x320 With ILI9341 IC And RGB/MCU Interface Touch LCD Display
Product Overview

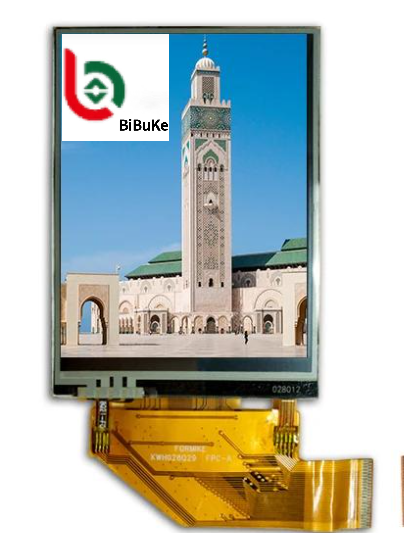

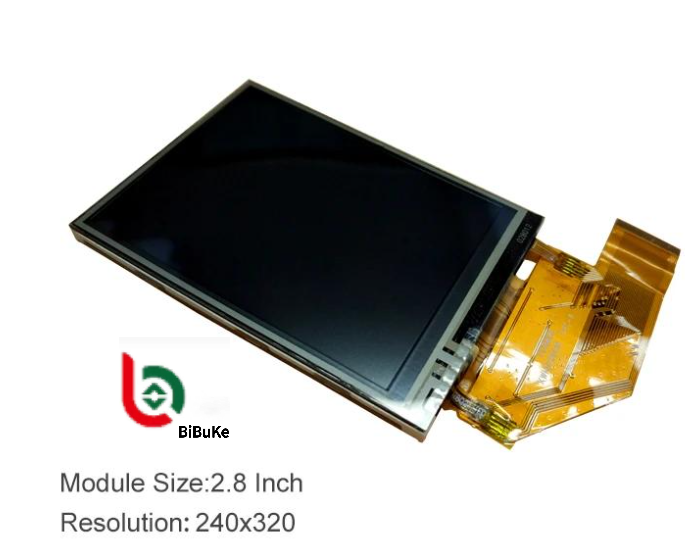

This is a 2.8-inch TFT color liquid crystal touch display module with a resolution of 240×320. The core driver is ILI9341 (often written as il9341). It supports both RGB and MCU (8/16-bit parallel) interfaces and comes with a resistive touch screen. It is a commonly used small-sized color display solution in embedded systems.
Product Specifications
| Product: |
2.8" Inch TFT LCD MODULE |
Touch Screen: |
With Resistive Touch Screen |
| Resolution: |
240x320 |
Viewing Direction: |
12 O'clock |
| Interface: |
RGB/MCU |
Pin Number: |
50 Pins |
| Connection: |
FPC Type Connection |
Surface Luminance: |
280-350 Cd/m² |
| Operating Temp.: |
-20℃ To +70℃ |
Compliance: |
REACH & RoHS Compliant |
Core Parameters
- Screen size: 2.8 inches (diagonal)
- Resolution: 240 (columns) × 320 (rows), RGB pixel arrangement
- Driver chip: ILI9341, with built-in GRAM, display controller and power circuit
- Touch type: Four-wire resistive touchscreen, paired with XPT2046 touch chip
- Display color: 16-bit RGB565, capable of showing 65,536 colors
- Interfaces: MCU interface (8-bit / 16-bit parallel) and RGB interface
- Brightness / contrast: Approximately 280-300 cd/m², contrast 300:1
- Power supply: Logic 3.3V, backlight 5V, working current approximately 60-90mA
- Size: Module approximately 50×69.2×3.65mm, display area 43.2×57.6mm
- Operating temperature: -20°C to +70°C
Main Applications
- Embedded Development Board: Standard display module for development boards such as STM32, ESP32, and Arduino
- Smart Home Appliances Control: Operation panels for rice cookers, air conditioners, washing machines, and smart speakers
- Industrial Control Terminal: Display and human-machine interaction interfaces for small PLCs, data collectors, and instruments
- Consumer Electronics: Color screens for mini game consoles, MP4 players, digital photo frames, and educational devices
- Internet of Things Devices: Local display and touch operation interfaces for sensor nodes and smart home controllers
- Education and Maker Projects: Interactive screens in electronic DIY, course design, and robot projects
