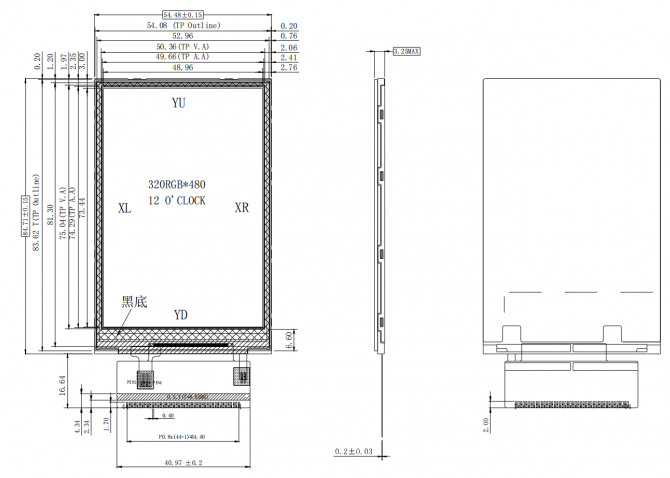

Mechanical Dimensions

Interface Pin Definition

Product Overview

This is a 3.5-inch TFT LCD resistive touch screen module with a resolution of 320×480. It adopts a 16-bit parallel interface (MCU 8080), and is equipped with a built-in driver chip (commonly ILI9488/ST7796) and a resistive touch chip (XPT2046). It supports 65K color display and comes with a PCB base plate. It can be directly adapted to development boards such as STM32 and Arduino, and is a commonly used human-machine interaction interface (HMI) solution in embedded systems.

Core Features

Display Performance: 3.5 inches, 320×480 pixels, TFT true color, 65K colors (16bit RGB), brightness approximately 300 cd/m², supports landscape/vertical screen switching.
Touch Type: Resistive touchscreen, supports pressure sensing, can be operated by pen tip / finger / glove, highly resistant to interference, suitable for industrial and complex environments.
Interface Specifications: 16-bit parallel interface (8080 timing), fast data transmission, low refresh delay; compatible with 3.3V/5V levels, compatible with STM32, C51, Arduino, etc. platforms.
Physical Parameters: Shape approximately 55×85mm, thickness approximately 3–4mm, operating temperature **-20℃~70℃**, industrial-grade stability.
Driver and Touch IC: Common LCD drivers include ILI9488/ST7796, touch control is XPT2046, provides complete routines and driver code.

Main purpose

Industrial Control HMI: Used for PLCs, industrial control computers, and equipment control panels, it displays parameters, status, and alarms, and supports on-site button/touch operations.
Embedded Development and DIY: Display and interaction interfaces for STM32/Arduino projects (such as intelligent terminals, data collectors, simple oscilloscopes).
Medical Equipment: Portable detectors, monitors, blood glucose meters, etc., display vital signs and test data.
Smart Home Appliances and IoT: Smart control panels, environmental monitors, home central control in smart homes, achieving status display and touch operation.
Consumer Electronics: Portable players, electronic dictionaries, handheld devices, providing color display and touch input.
Vehicle and Security: Vehicle diagnostic instruments, access control terminals, attendance machines, suitable for low-power consumption and stable operation scenarios.

Summary of Advantages

16-bit parallel port: Fast refresh, strong real-time performance, suitable for dynamic interfaces.
Resistive touch: Strong environmental adaptability, reliable in industrial scenarios.
High compatibility: Plug-and-play, rich routines, short development cycle.
Industrial-grade stability: Wide temperature range, anti-interference, suitable for harsh environments.
